TVS Auto Rectifiers

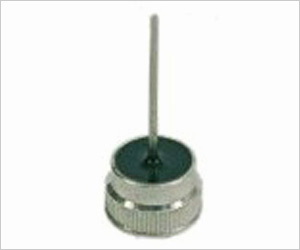

TVS (or Transient Voltage Suppression) Auto Rectifiers are constructed with glass passivated chips and are assembled in high reliable, hermetic press-fit package.

These devices have high surge capability, low forward voltage drop, low leakage, and high current capability.In addition, these devices are also very low cost.

The TVS Auto Rectifiers are mainly used in automotive applications.

The current range starts from 25A upto 50A, with voltages upto 35V.
Devices are available in Press fit package.

Part Number	V_RRM (V)	I_F(AV) (A)	I_FSM (A)	V_F (V)	R_{th (j-c)} (^oC/W)	Package
NP2520	20	25	350	1.1	0.8	Press-fit
NP2520R	20	25	350	1.1	0.8	Press-fit
NP2524	24	25	350	1.1	0.8	Press-fit
NP2524R	24	25	350	1.1	0.8	Press-fit
NP2534	34	25	350	1.1	0.8	Press-fit
NP2534R	34	25	350	1.1	0.8	Press-fit
NP3520	20	35	450	1.1	0.8	Press-fit
NP3520R	20	35	450	1.1	0.8	Press-fit
NP3524	24	35	450	1.1	0.8	Press-fit
NP3524R	24	35	450	1.1	0.8	Press-fit
NP3534	34	35	450	1.1	0.8	Press-fit
NP3534R	34	35	450	1.1	0.8	Press-fit
NP5020	20	50	600	1.2	0.8	Press-fit
NP5020R	20	50	600	1.2	0.8	Press-fit
NP5024	24	50	600	1.2	0.8	Press-fit
NP5024R	24	50	600	1.2	0.8	Press-fit
NP5024	34	50	600	1.2	0.8	Press-fit
NP5024R	34	50	600	1.2	0.8	Press-fit
