Standard Auto Rectifiers Manufacturer & Supplier

Standard Auto Rectifiers

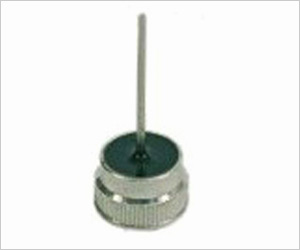

Standard Auto Rectifiers are constructed with glass passivated chips and are assembled in high reliable, hermetic press-fit package.

These devices have high surge capability, low forward voltage drop, low leakage, and high current capability.In addition, these devices are also very low cost.

The Standard Auto Rectifiers are mainly used in automotive applications.

The current range starts from 25A upto 50A, with voltages upto 600V.
Devices are available in Press fit package.

Part Number	V_RRM (V)	I_F(AV) (A)	I_FSM (A)	V_F (V)	R_{th (j-c)} (^oC/W)	Package
NP2502	200	25	300	1.0	0.8	Press-fit
NP2502R	200	25	300	1.0	0.8	Press-fit
NP2504	400	25	300	1.0	0.8	Press-fit
NP2504R	400	25	300	1.0	0.8	Press-fit
NP2506	600	25	300	1.0	0.8	Press-fit
NP2506R	600	35	300	1.0	0.8	Press-fit
NP3502	200	35	400	1.0	0.8	Press-fit
NP3502R	200	35	400	1.0	0.8	Press-fit
NP3504	400	35	400	1.0	0.8	Press-fit
NP3504R	400	35	400	1.0	0.8	Press-fit
NP3506	600	35	400	1.0	0.8	Press-fit
NP3506R	600	35	400	1.0	0.8	Press-fit
NP5002	200	50	600	1.0	0.8	Press-fit
NP5002R	200	50	600	1.1	0.8	Press-fit
NP5004	400	50	600	1.1	0.8	Press-fit
NP5004R	400	50	600	1.1	0.8	Press-fit
NP5006	600	50	600	1.1	0.8	Press-fit
NP5006R	600	50	600	1.1	0.8	Press-fit
