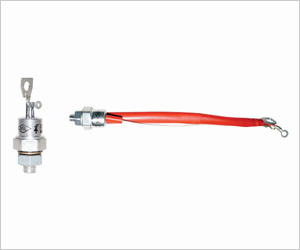

Thyristors (SCR’s) are constructed with glass passivated chips and are assembled in high reliable, robust hermetic sealed housing structures. They are mechanically strong and are stable under negative environmental conditions.
These devices have high reliability and exceptional stability at high temperatures.They have superior surge capabilities and feature low thermal resistance.
SCR’s are used in applications where high currents and voltages are involved. AC switches, bridge rectifier converters, DC motor controls, welding, AC motor drives, soft starters, etc.
| Part Number |
VRRM (V) |
IT(AV) (A) |
VTM (V) |
ITSM (A) |
VGT (V) |
IGT (mA) |
dv/dt (V/µs) |
Rth (j-c) (oC/W) |
Package |
|---|---|---|---|---|---|---|---|---|---|
|
200
|
25
|
1.7
|
400
|
≤ 2.5
|
10-50
|
300
|
0.80
|
TO-48
|
|
|
400
|
25
|
1.7
|
400
|
≤ 2.5
|
10-50
|
300
|
0.80
|
TO-48
|
|
|
600
|
25
|
1.7
|
400
|
≤ 2.5
|
10-50
|
300
|
0.80
|
TO-48
|
|
|
800
|
25
|
1.7
|
400
|
≤ 2.5
|
10-50
|
300
|
0.80
|
TO-48
|
|
|
1000
|
25
|
1.7
|
400
|
≤ 2.5
|
10-50
|
300
|
0.80
|
TO-48
|
|
|
1200
|
25
|
1.7
|
400
|
≤ 2.5
|
10-50
|
300
|
0.80
|
TO-48
|
|
|
1600
|
25
|
1.7
|
400
|
≤ 2.5
|
10-50
|
300
|
0.80
|
TO-48
|
|
|
200
|
40
|
1.6
|
700
|
≤ 2.5
|
50-100
|
300
|
0.66
|
TO-65
|
|
|
400
|
40
|
1.6
|
700
|
≤ 2.5
|
50-100
|
300
|
0.66
|
TO-65
|
|
|
600
|
40
|
1.6
|
700
|
≤ 2.5
|
50-100
|
300
|
0.66
|
TO-65
|
|
|
800
|
40
|
1.6
|
700
|
≤ 2.5
|
50-100
|
300
|
0.66
|
TO-65
|
|
|
1000
|
40
|
1.6
|
700
|
≤ 2.5
|
50-100
|
300
|
0.66
|
TO-65
|
|
|
1200
|
40
|
1.6
|
700
|
≤ 2.5
|
50-100
|
300
|
0.66
|
TO-65
|
|
|
1600
|
40
|
1.6
|
700
|
≤ 2.5
|
50-100
|
300
|
0.66
|
TO-65
|
|
|
200
|
56
|
1.6
|
1000
|
≤ 2.5
|
50-150
|
300
|
0.45
|
TO-65
|
|
|
400
|
56
|
1.6
|
1000
|
≤ 2.5
|
50-150
|
300
|
0.45
|
TO-65
|
|
|
600
|
56
|
1.6
|
1000
|
≤ 2.5
|
50-150
|
300
|
0.45
|
TO-65
|
|
|
800
|
56
|
1.6
|
1000
|
≤ 2.5
|
50-150
|
300
|
0.45
|
TO-65
|
|
|
1000
|
56
|
1.6
|
1000
|
≤ 2.5
|
50-150
|
300
|
0.45
|
TO-65
|
|
|
1200
|
56
|
1.6
|
1000
|
≤ 2.5
|
50-150
|
300
|
0.45
|
TO-65
|
|
|
1600
|
56
|
1.6
|
1000
|
≤ 2.5
|
50-150
|
300
|
0.45
|
TO-65
|
|
|
200
|
70
|
1.6
|
1200
|
≤ 2.5
|
50-150
|
500
|
0.35
|
TO-94
|
|
|
400
|
70
|
1.6
|
1200
|
≤ 2.5
|
50-150
|
500
|
0.35
|
TO-94
|
|
|
600
|
70
|
1.6
|
1200
|
≤ 2.5
|
50-150
|
500
|
0.35
|
TO-94
|
|
|
800
|
70
|
1.6
|
1200
|
≤ 2.5
|
50-150
|
500
|
0.35
|
TO-94
|
|
|
1000
|
70
|
1.6
|
1200
|
≤ 2.5
|
50-150
|
500
|
0.35
|
TO-94
|
|
|
1200
|
70
|
1.6
|
1200
|
≤ 2.5
|
50-150
|
500
|
0.35
|
TO-94
|
|
|
1600
|
70
|
1.6
|
1200
|
≤ 2.5
|
50-150
|
500
|
0.35
|
TO-94
|
|
|
200
|
100
|
1.52
|
2000
|
≤ 2.5
|
50-200
|
500
|
0.30
|
TO-94
|
|
|
400
|
100
|
1.52
|
2000
|
≤ 2.5
|
50-200
|
500
|
0.30
|
TO-94
|
|
|
600
|
100
|
1.52
|
2000
|
≤ 2.5
|
50-200
|
500
|
0.30
|
TO-94
|
|
|
800
|
100
|
1.52
|
2000
|
≤ 2.5
|
50-200
|
500
|
0.30
|
TO-94
|
|
|
1000
|
100
|
1.52
|
2000
|
≤ 2.5
|
50-200
|
500
|
0.30
|
TO-94
|
|
|
1200
|
100
|
1.52
|
2000
|
≤ 2.5
|
50-200
|
500
|
0.30
|
TO-94
|
|
|
1600
|
100
|
1.52
|
2000
|
≤ 2.5
|
50-200
|
500
|
0.30
|
TO-94
|
|
|
200
|
125
|
1.6
|
2400
|
≤ 2.5
|
50-200
|
500
|
0.18
|
TO-94
|
|
|
400
|
125
|
1.6
|
2400
|
≤ 2.5
|
50-200
|
500
|
0.18
|
TO-94
|
|
|
600
|
125
|
1.6
|
2400
|
≤ 2.5
|
50-200
|
500
|
0.18
|
TO-94
|
|
|
800
|
125
|
1.6
|
2400
|
≤ 2.5
|
50-200
|
500
|
0.18
|
TO-94
|
|
|
1000
|
125
|
1.6
|
2400
|
≤ 2.5
|
50-200
|
500
|
0.18
|
TO-94
|
|
|
1200
|
125
|
1.6
|
2400
|
≤ 2.5
|
50-200
|
500
|
0.18
|
TO-94
|
|
|
1600
|
125
|
1.6
|
2400
|
≤ 2.5
|
50-200
|
500
|
0.18
|
TO-94
|
|
|
200
|
150
|
1.6
|
2700
|
≤ 2.5
|
50-200
|
500
|
0.11
|
TO-93
|
|
|
400
|
150
|
1.6
|
2700
|
≤ 2.5
|
50-200
|
500
|
0.11
|
TO-93
|
|
|
600
|
150
|
1.6
|
2700
|
≤ 2.5
|
50-200
|
500
|
0.11
|
TO-93
|
|
|
800
|
150
|
1.6
|
2700
|
≤ 2.5
|
50-200
|
500
|
0.11
|
TO-93
|
|
|
1000
|
150
|
1.6
|
2700
|
≤ 2.5
|
50-200
|
500
|
0.11
|
TO-93
|
|
|
1200
|
150
|
1.6
|
2700
|
≤ 2.5
|
50-200
|
500
|
0.11
|
TO-93
|
|
|
1600
|
150
|
1.6
|
2700
|
≤ 2.5
|
50-200
|
500
|
0.11
|
TO-93
|
|
|
200
|
175
|
1.75
|
4700
|
≤ 3
|
200
|
500
|
0.11
|
TO-93
|
|
|
400
|
175
|
1.75
|
4700
|
≤ 3
|
200
|
500
|
0.11
|
TO-93
|
|
|
600
|
175
|
1.75
|
4700
|
≤ 3
|
200
|
500
|
0.11
|
TO-93
|
|
|
800
|
175
|
1.75
|
4700
|
≤ 3
|
200
|
500
|
0.11
|
TO-93
|
|
|
1000
|
175
|
1.75
|
4700
|
≤ 3
|
200
|
500
|
0.11
|
TO-93
|
|
|
1200
|
175
|
1.75
|
4700
|
≤ 3
|
200
|
500
|
0.11
|
TO-93
|
|
|
1600
|
175
|
1.75
|
4700
|
≤ 3
|
200
|
500
|
0.11
|
TO-93
|
|
|
200
|
200
|
1.65
|
4500
|
≤ 3
|
150
|
500
|
0.11
|
TO-93
|
|
|
400
|
200
|
1.65
|
4500
|
≤ 3
|
150
|
500
|
0.11
|
TO-93
|
|
|
600
|
200
|
1.65
|
4500
|
≤ 3
|
150
|
500
|
0.11
|
TO-93
|
|
|
800
|
200
|
1.65
|
4500
|
≤ 3
|
150
|
500
|
0.11
|
TO-93
|
|
|
1000
|
200
|
1.65
|
4500
|
≤ 3
|
150
|
500
|
0.11
|
TO-93
|
|
|
1200
|
200
|
1.65
|
4500
|
≤ 3
|
150
|
500
|
0.11
|
TO-93
|
|
|
1600
|
200
|
1.65
|
4500
|
≤ 3
|
150
|
500
|
0.11
|
TO-93
|
|
|
200
|
235
|
1.55
|
4800
|
≤ 3
|
150
|
500
|
0.11
|
TO-93
|
|
|
400
|
235
|
1.55
|
4800
|
≤ 3
|
150
|
500
|
0.11
|
TO-93
|
|
|
600
|
235
|
1.55
|
4800
|
≤ 3
|
150
|
500
|
0.11
|
TO-93
|
|
|
800
|
235
|
1.55
|
4800
|
≤ 3
|
150
|
500
|
0.11
|
TO-93
|
|
|
1000
|
235
|
1.55
|
4800
|
≤ 3
|
150
|
500
|
0.11
|
TO-93
|
|
|
1200
|
235
|
1.55
|
4800
|
≤ 3
|
150
|
500
|
0.11
|
TO-93
|
|
|
1600
|
235
|
1.55
|
4800
|
≤ 3
|
150
|
500
|
0.11
|
TO-93
|
