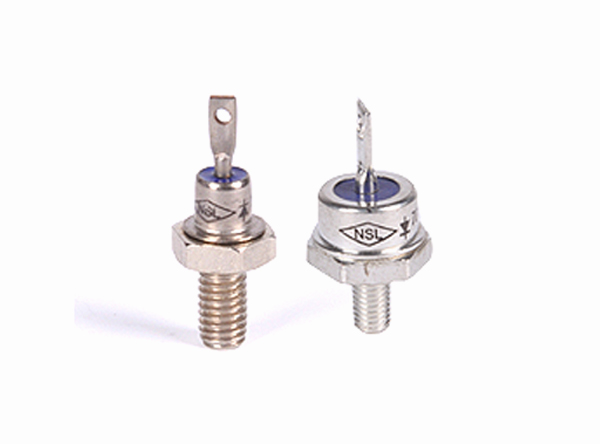

BZY93C7V5
Zener Diode 20 Watt, 7.45V, 6%, 2-Pin, DO-4
This high power 20 W Zener diodes BZY93 series provide voltage regulation in a selection over a 7.5 V to 75 V broad range of voltages. The heat sinking with their low thermal resistance. These devices have a very low forward voltage drop and a very fast switching feature. These device has better efficiency and high switching speed.
| Features | Values | Unit |
|---|---|---|
| Nominal Zener Voltage VZ@IZT | 14 | (V) |
| Zener Test Current IZT | 180 | (mA) |
| Max Zener Impedance ZZT@IZT | 3 | (Ohms) |
| Max Zener Impedance ZZK@IZK = 5 mA | 250 | (Ohms) |
| Max DC Zener Current IZM | 600 | (mA) |
| Typical Temperature Coefficient αVZ | 0.070 | %/°C |
| Max Reverse Current IR@10.5VR | 10 | (µA) |
| Package | DO-4 |
