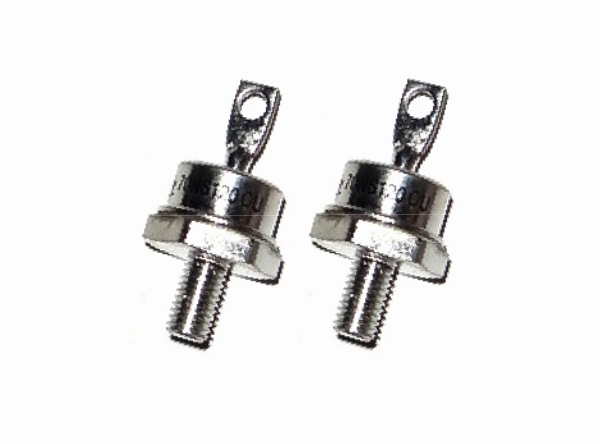

Zener Diode 75 Watt, 74.5V, 6%, 2-Pin, DO-5

This high power 75 W Zener diodes BZY91 series provide voltage regulation in a selection over a 7.5 V to 75 V broad range of voltages. The heat sinking with their low thermal resistance. These devices have a very low forward voltage drop and a very fast switching feature. These device has better efficiency and high switching speed.

Features Values Unit
Nominal Zener Voltage 74.5 (V)
Maximum Zener Impedance 2.6 (Ω)
Zener Resistance Typ./max. RZ@IZ 0.51/2.6 (Ω)
Max Reverse Current IR@51VR 1.0 (mA)
Maximum Operating Temperature +175 °C
Minimum Operating Temperature -55 °C
Tolerance 6%
Configuration Single
Package DO-5
